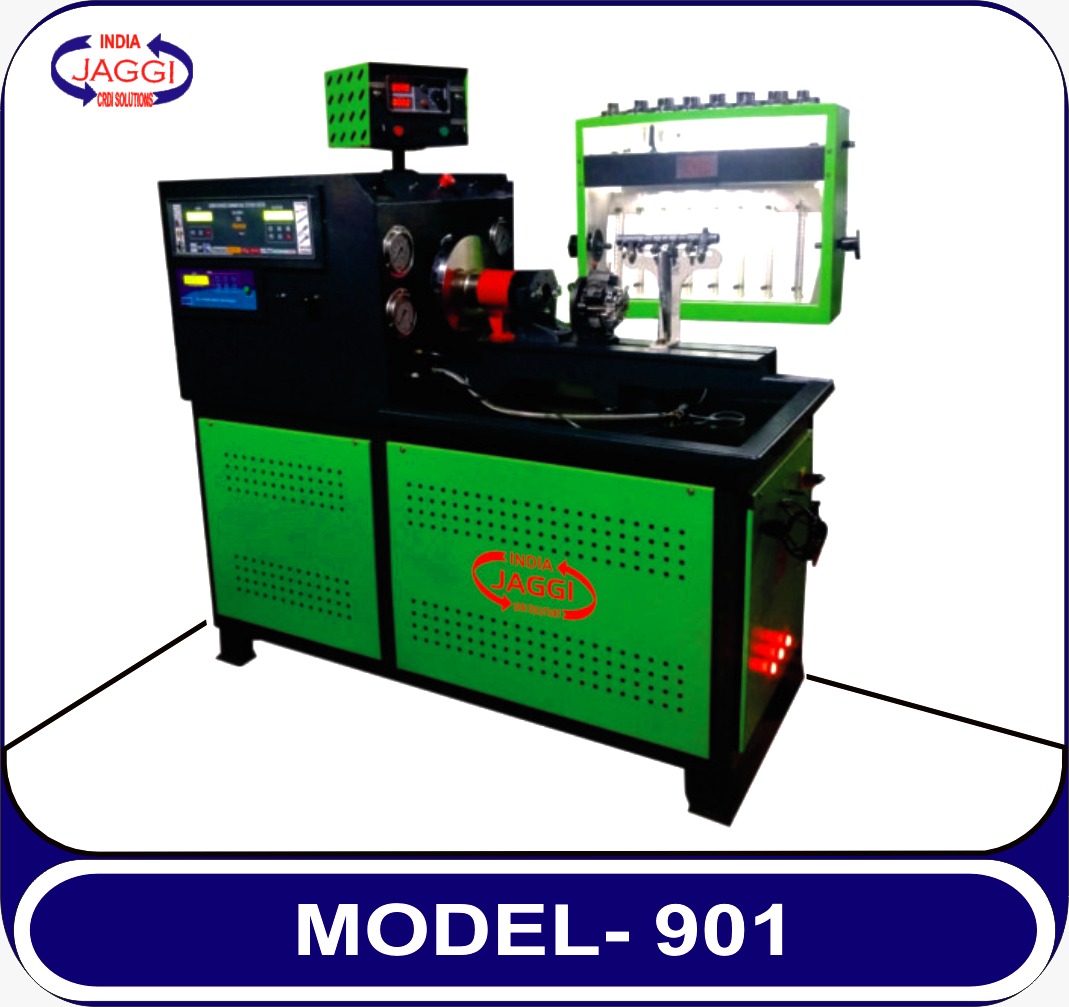

| TECHNICAL SPECIFICATIONS |
| NO. OF CYLINDER |
Eight (Can Be Measured Clockwise or Anti Clockwise) |
| MAIN FABRICATED FRAME |
6 mm section, 22 " wide with extra Electric Panel |
| NATURE OF DRIVE |
A.C. Inverter Drive |
| MAIN ELECTRIC DRIVE |
7.5 H.P. or 5 H.P. , 440 volts or 220 volts |
| FUEL SUPPLY MOTOR |
1 H.P. 440 volts or 220 volts |
| DISPLAY |
Tachometer |
| R.P.M. RANGE |
0-3000 R.P.M. |
| PRESSURE GAUGES |
0-7, 0-2.5, 0-21, 0-42 Bar(4" Dia) |
| OIL TANK |
40 Liters (M.S.) |
| R.P.M. CONTROL |
By Speed Booster |
| SWIVELING INJECTOR CONTROL |
Fixed 240 mm Long Glass Tubes |
| FLYWHEEL |
300 mm (Hard Crommed) |
| MOUNTING RAIL |
M.S. Fabricated |
| TRANSMISSION |
Direct Drive |
| MAIN MOTOR TO HOUSING |
7.5 HP Or 5HP 440 Volt And 220 Volt |
| SOLENOID OPERATION |
Single |
| F.I.P. MOUNTING ACESSORIES |
For Inline & Rotary |
| INJECTORS |
On Extra Cost As per Choice |
| FLEXIBLE COUPLING |
95 mm |
| CRDI SIMULATOR |
For testing all CR Injectors, Pump and Rail |
| EDC ACTUATOR |
For testing EDC pump VP 37 |
| CR TOOL AND ACCESSORIES |
CR Pump, Rail with DRV and Sensor With |
